Dental Implant Model Resin

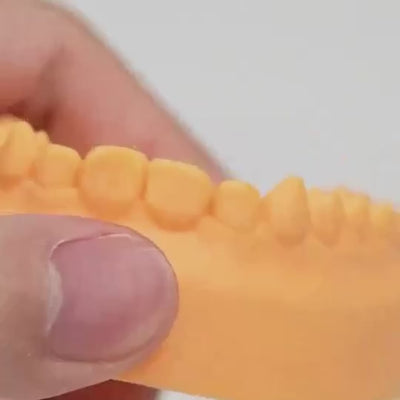

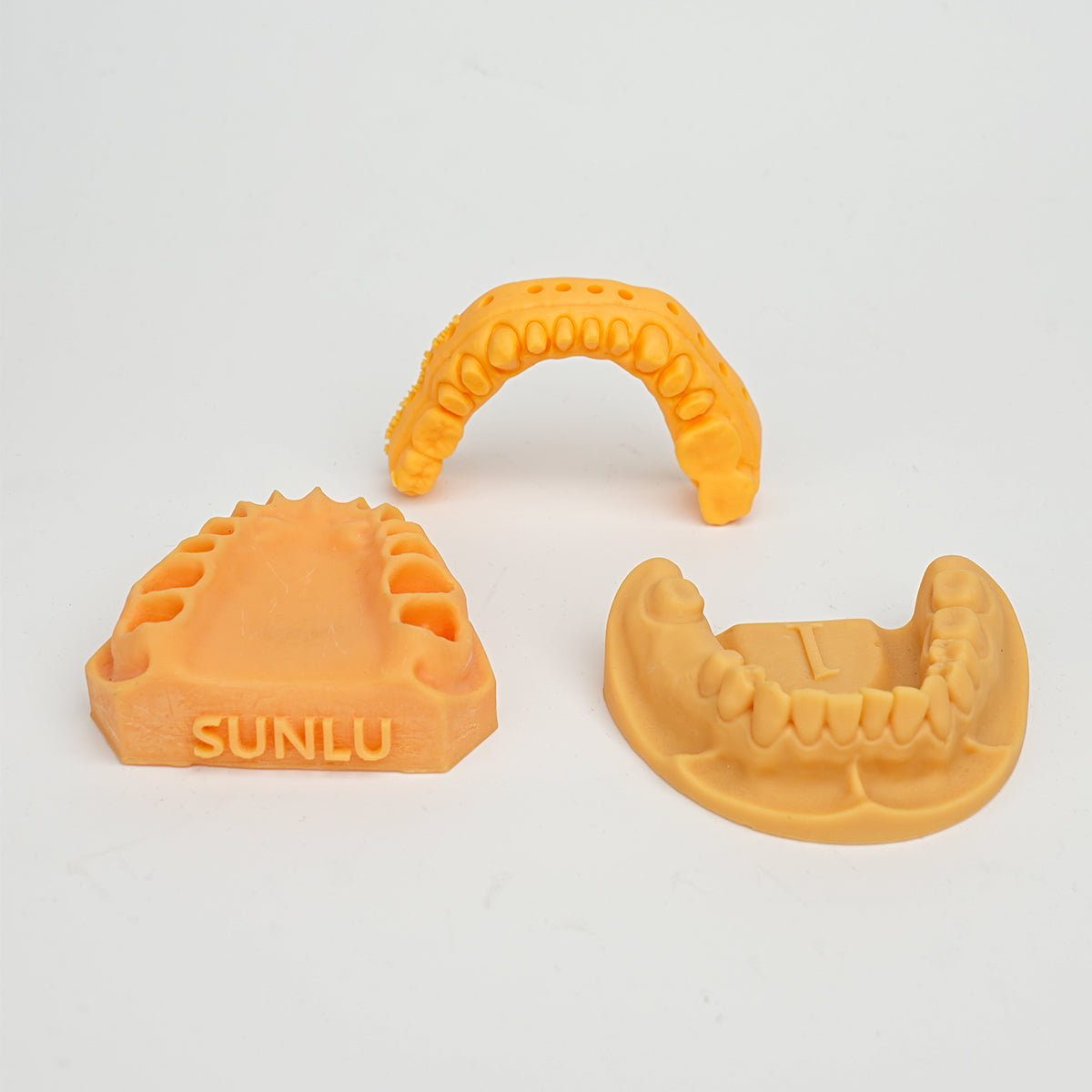

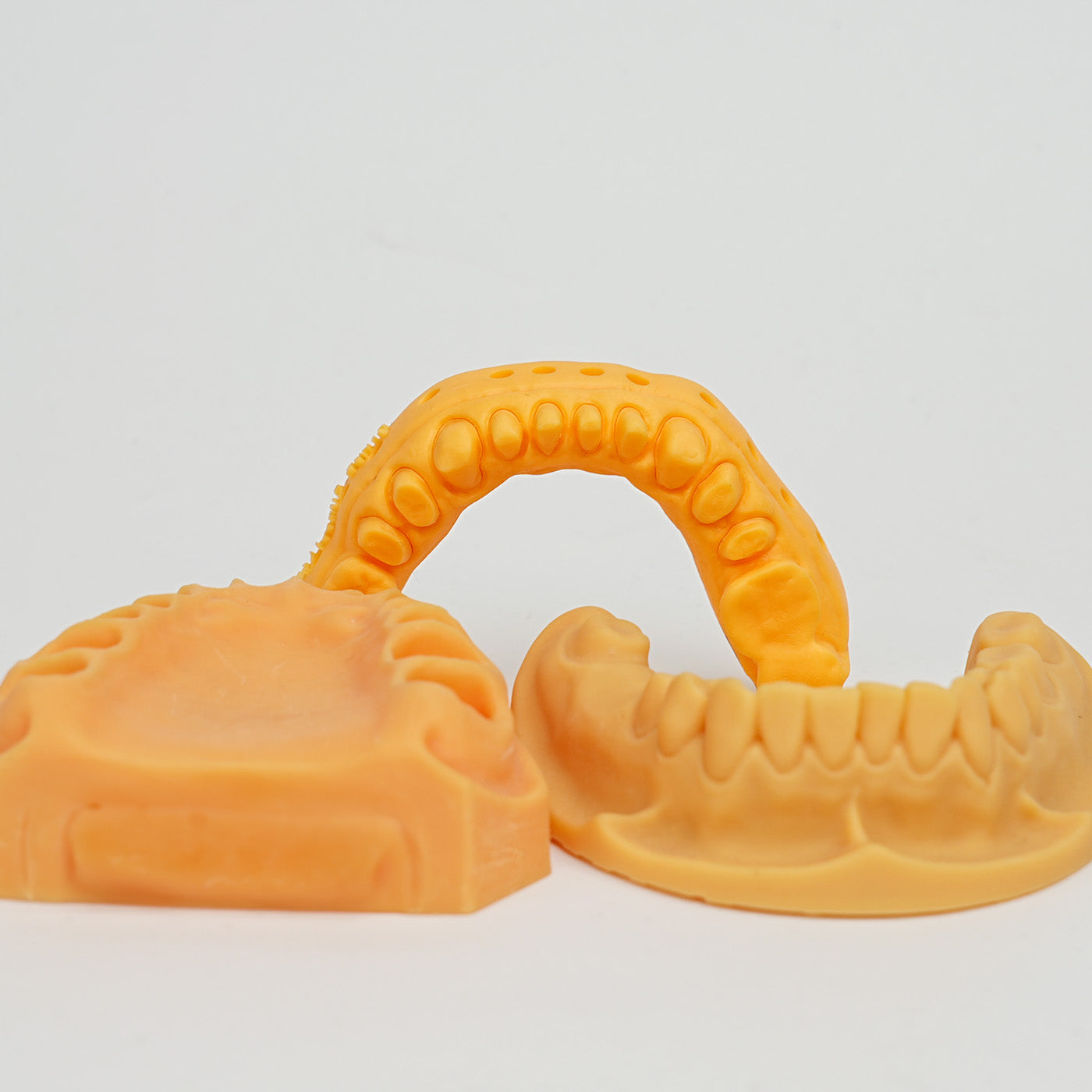

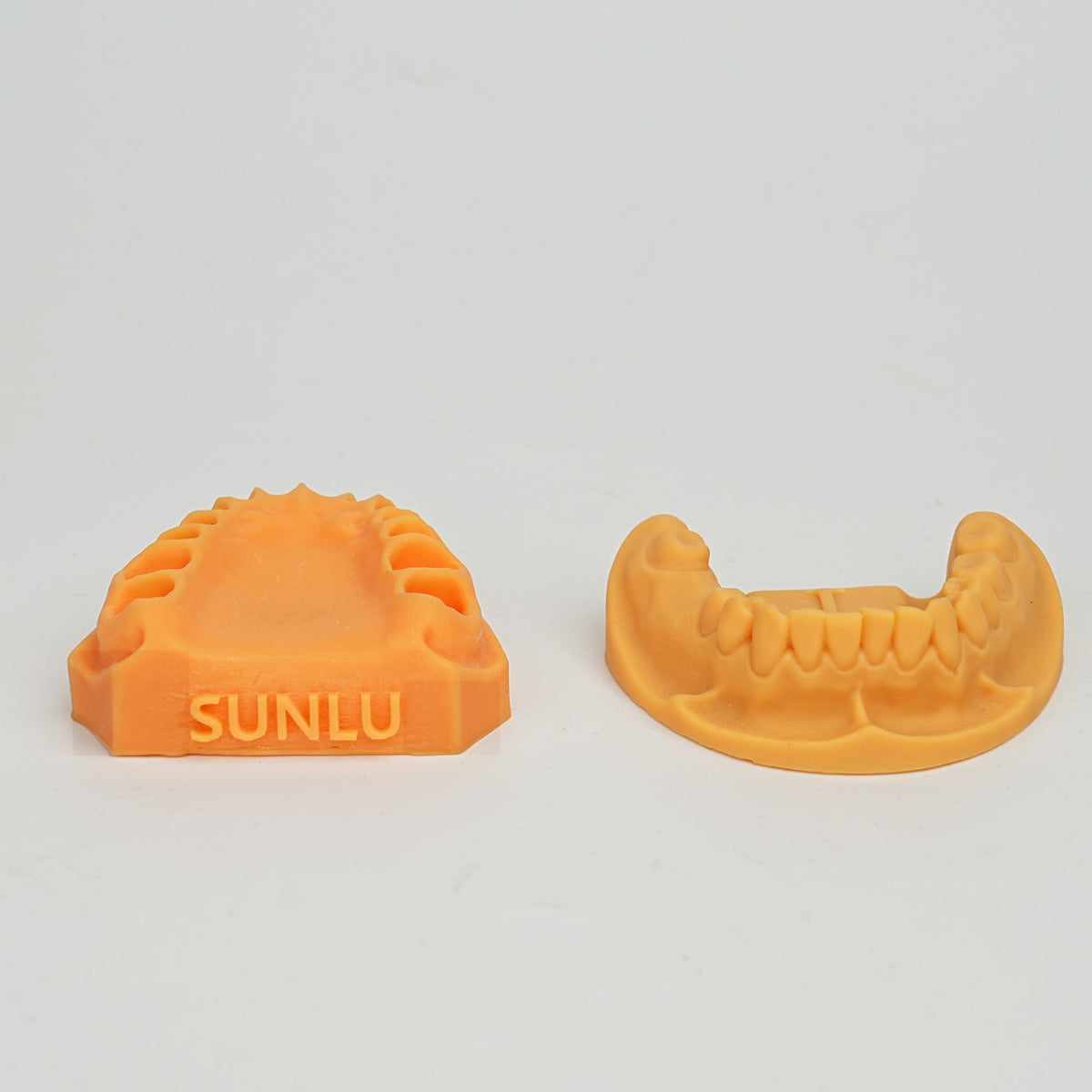

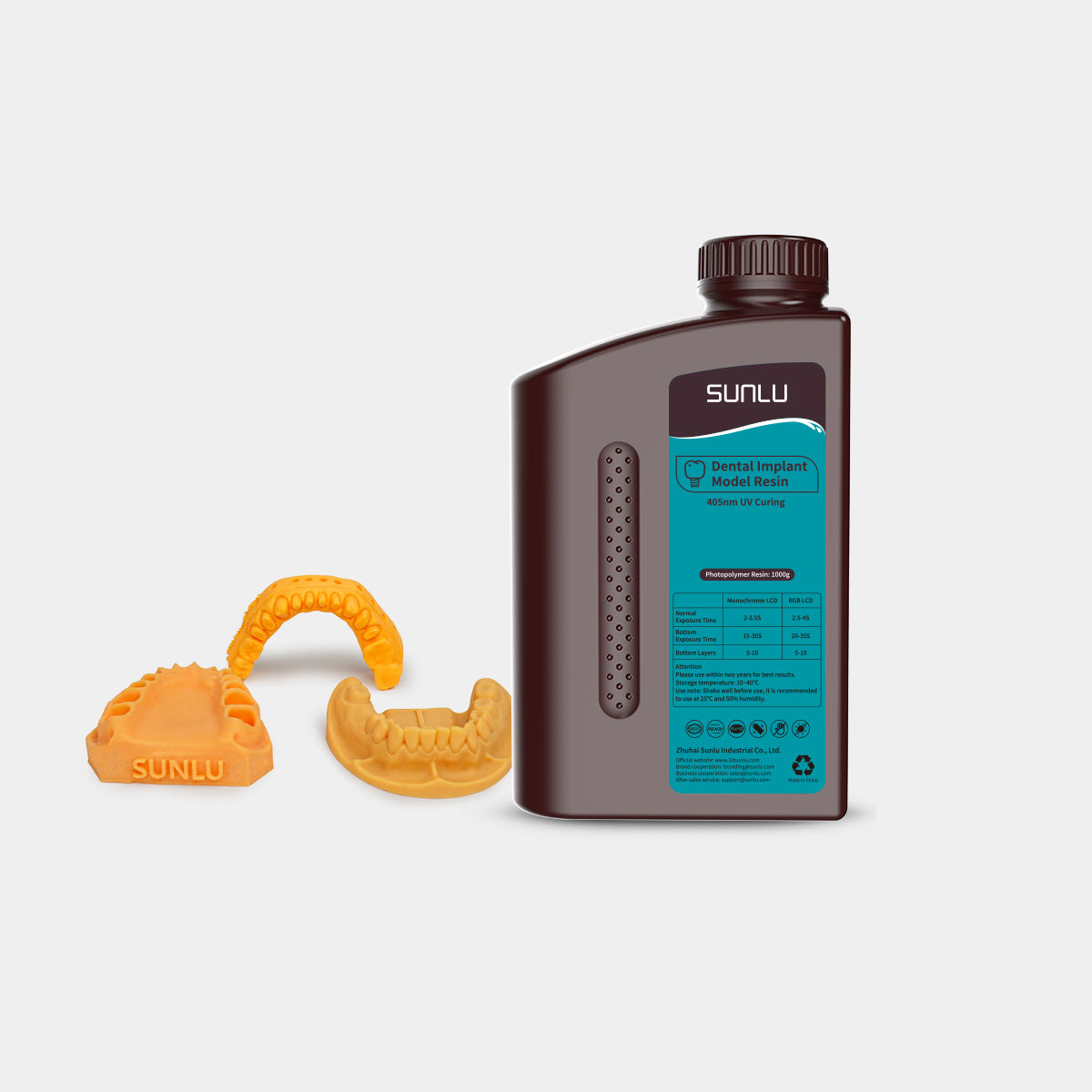

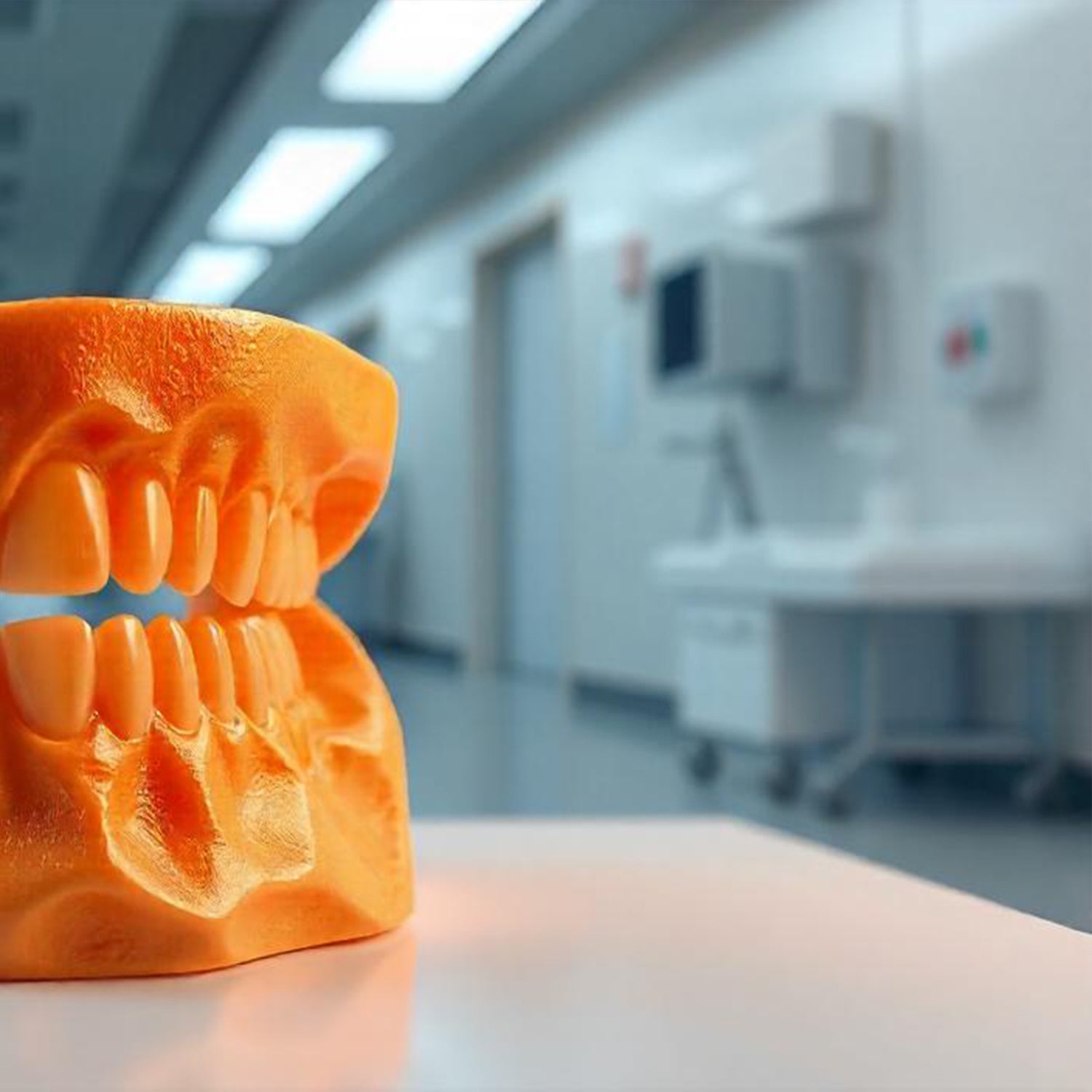

SUNLU Dental Implant Model Resin is a high-performance resin specifically designed for dental implant modeling procedures, offering high precision and excellent toughness. This resin provides dentists with an accurate and efficient solution for dental implant models.

Weight: 333g, 500g, 1 kg, 2kg, 3kg, 4 kg

Color:Yellow

Variant

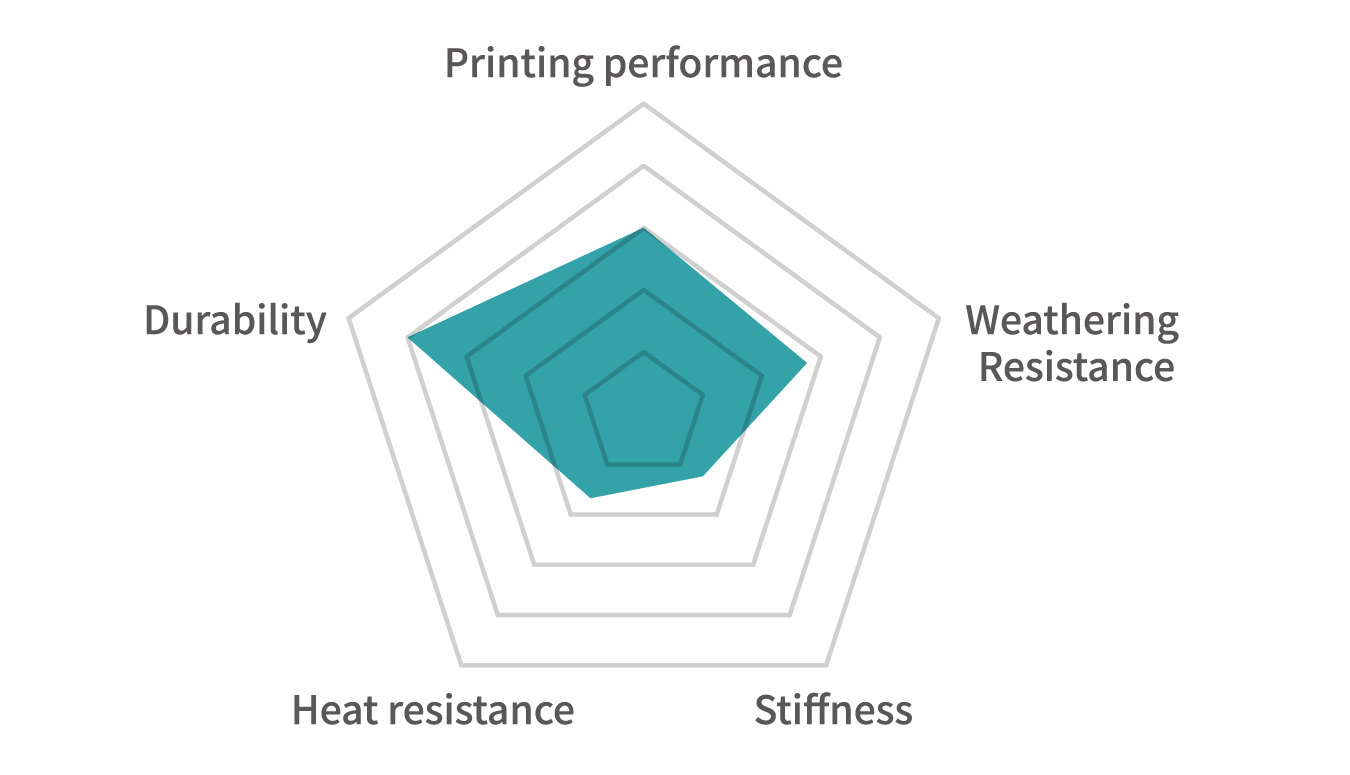

Material Properties

Tensile Strength: 25MPa

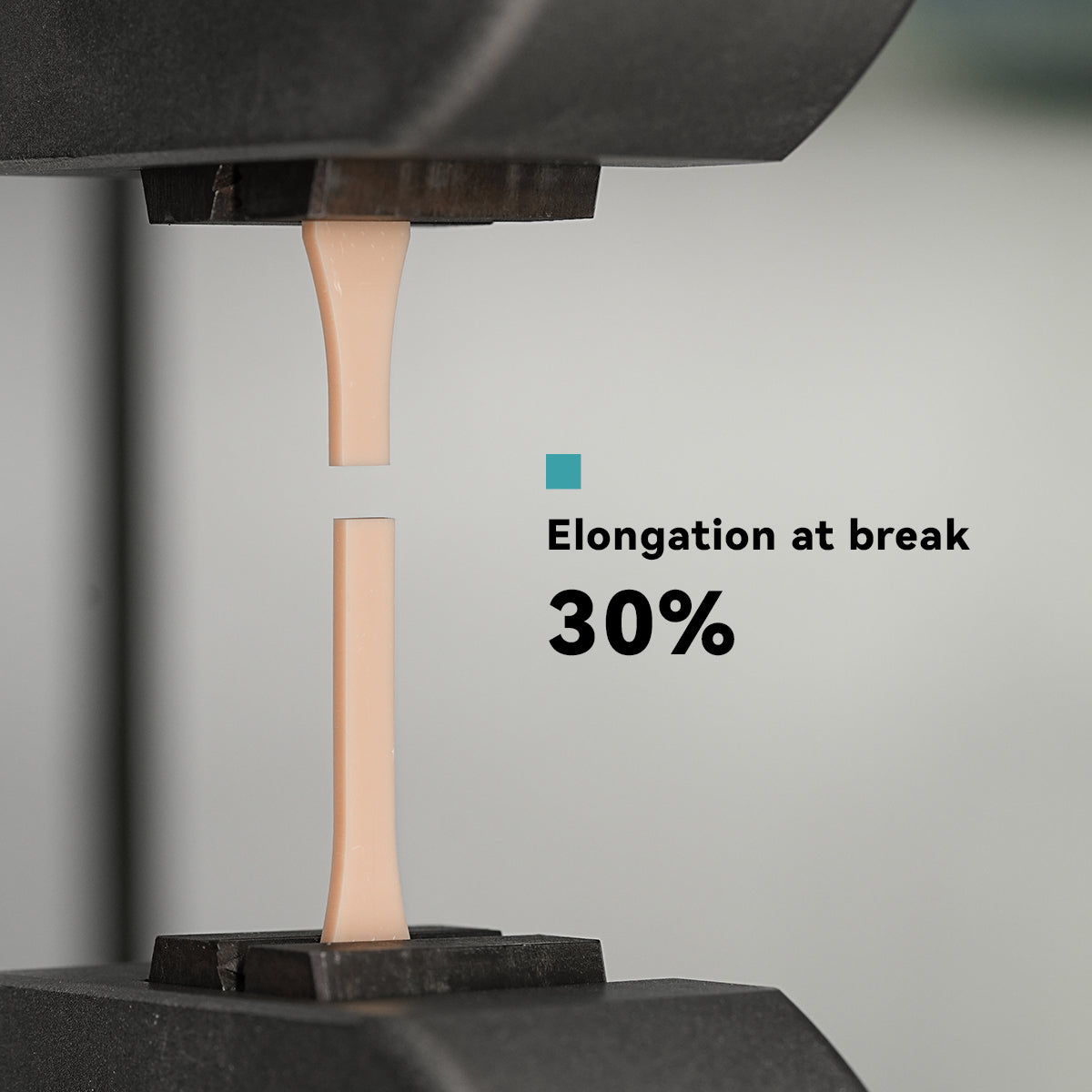

Elongation at break: 30%
Flexural Strength: 35MPa
Flexural Modulus: 956MPa
IZOD Impact Notched: 130J/m

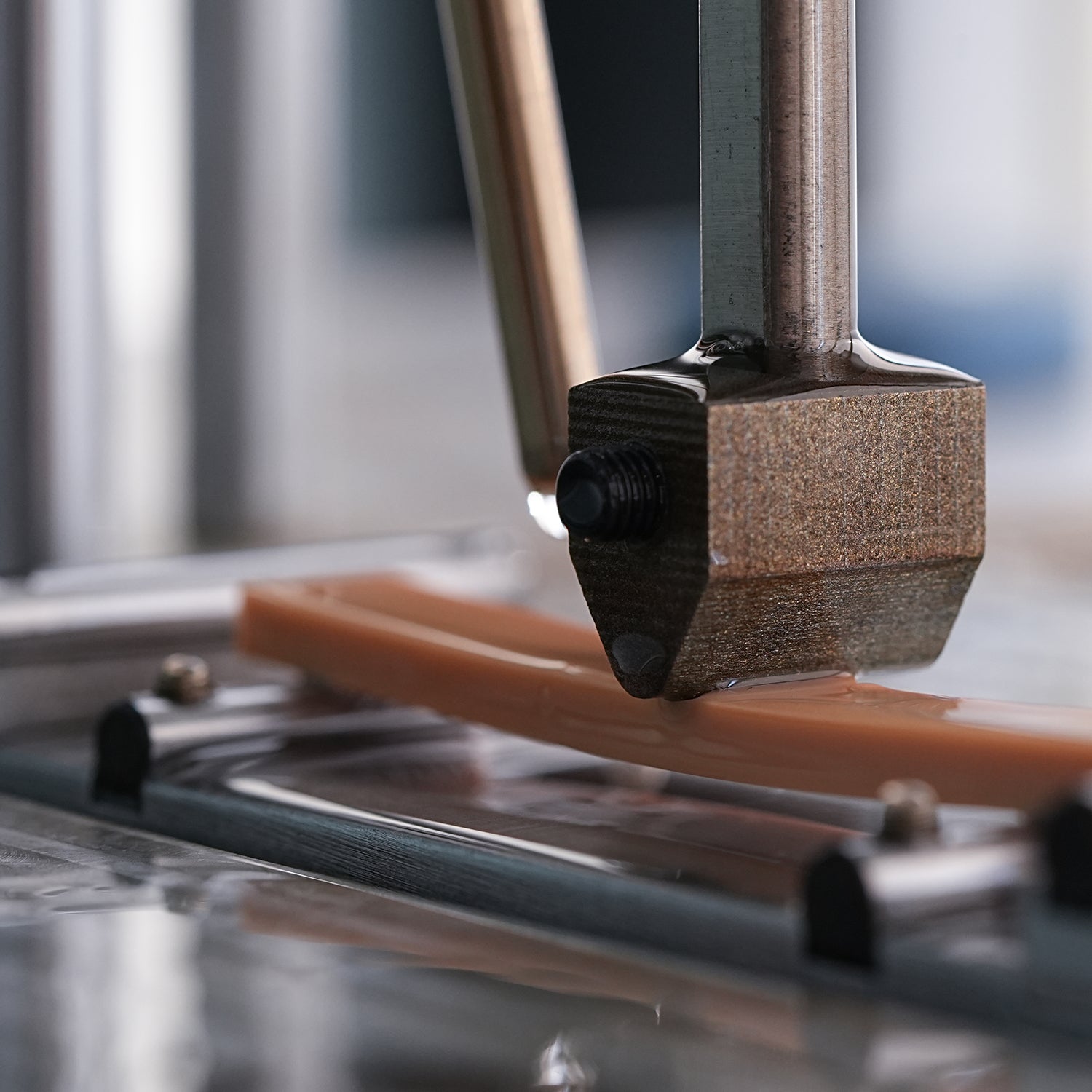

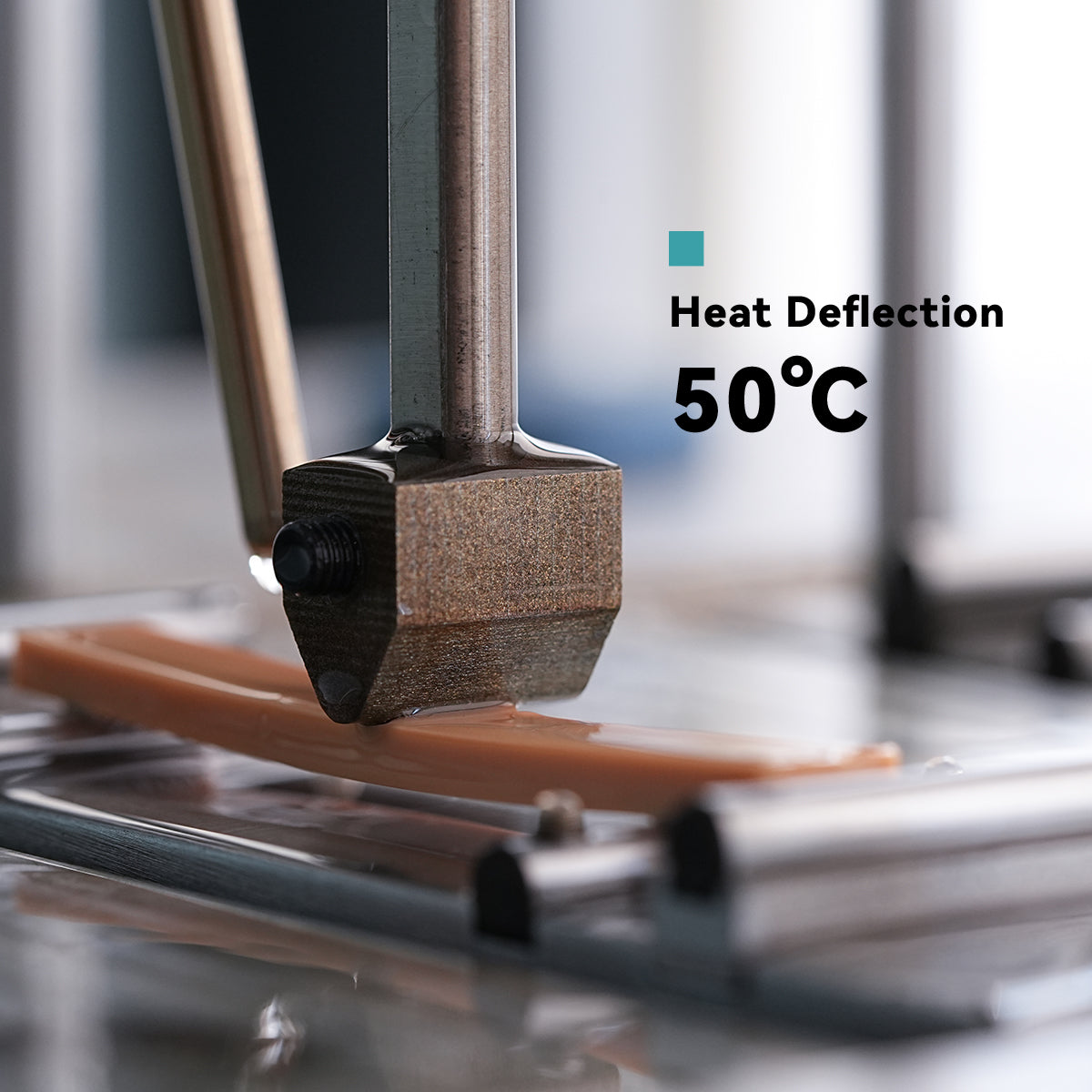

Heat Deflection: 50℃
Lishao hardness: 75D
Mold Shrinkage: 8%

Compatible with LCD, SLA, and DLP resin 3D printers operating within the UV light wavelength range of 365-405nm.

Post-Processing

Precautions

Wear gloves and a mask when handling liquid resin or resin-coated surfaces. Avoid direct contact with skin or eyes.

Wash Settings

Place the printed model in an ultrasonic cleaner for 3 minutes to remove uncured resin from the surface.
Rinse the model’s surface with isopropyl alcohol (IPA) or alcohol, and use a brush if necessary to ensure all resin residue is removed.

Cure Settings

Default: 5 minutes in a UV resin curing box.
If the print remains sticky after curing, clean it again using IPA and a toothbrush, then place it under UV light for further curing
